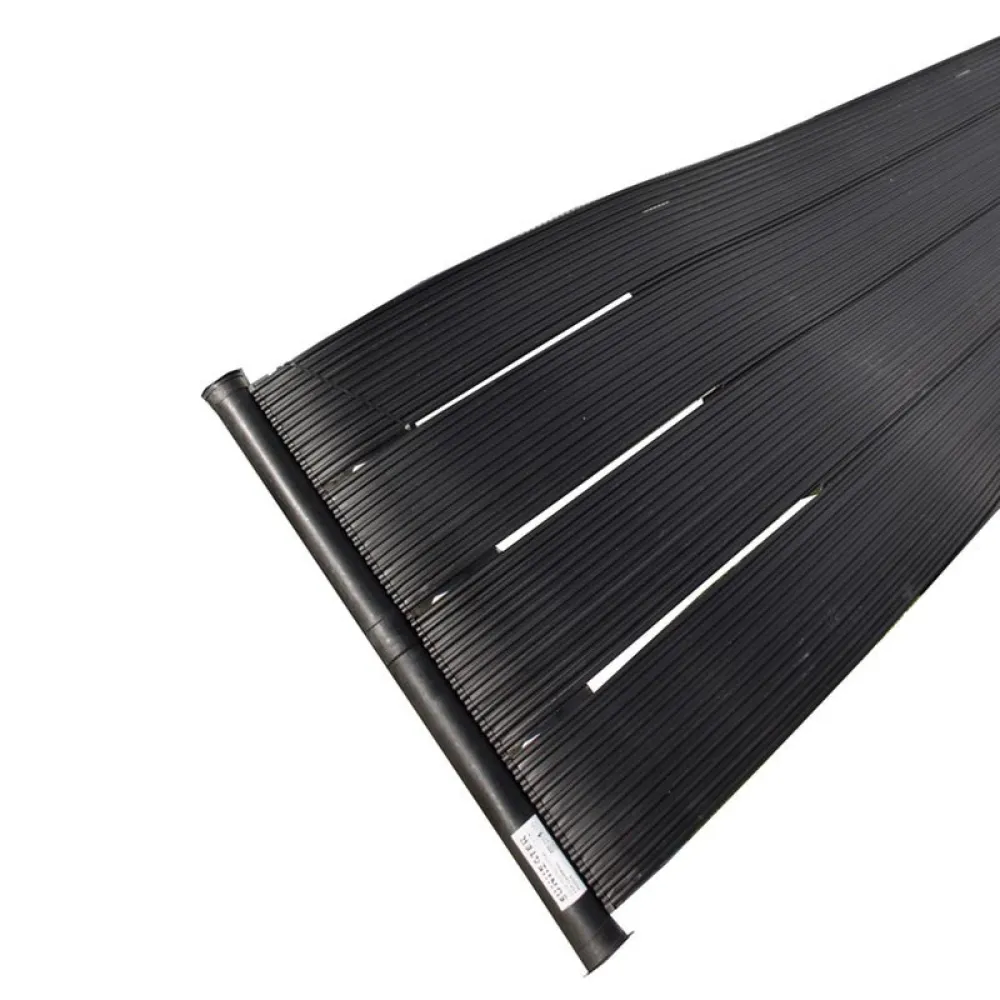

Solar Pool Water Heating System

System for heating the pool water through solar action. It allows to increase the temperature of your pool by the action of the sun. The heaters can be connected together. Increases water temperature 3°C in pools between 7.5m³ and 10m³.

Features:

– Required pump power 0,33 CV
– Heat generated Up to 6ºC
– Heating system to acclimatise the water of above ground pools
– Increase the water temperature by 6°C
– More than 12 kW/h of heat by day
– Needs minimum recommended pump power of 1/2 CV
– Easy installation and de-installation

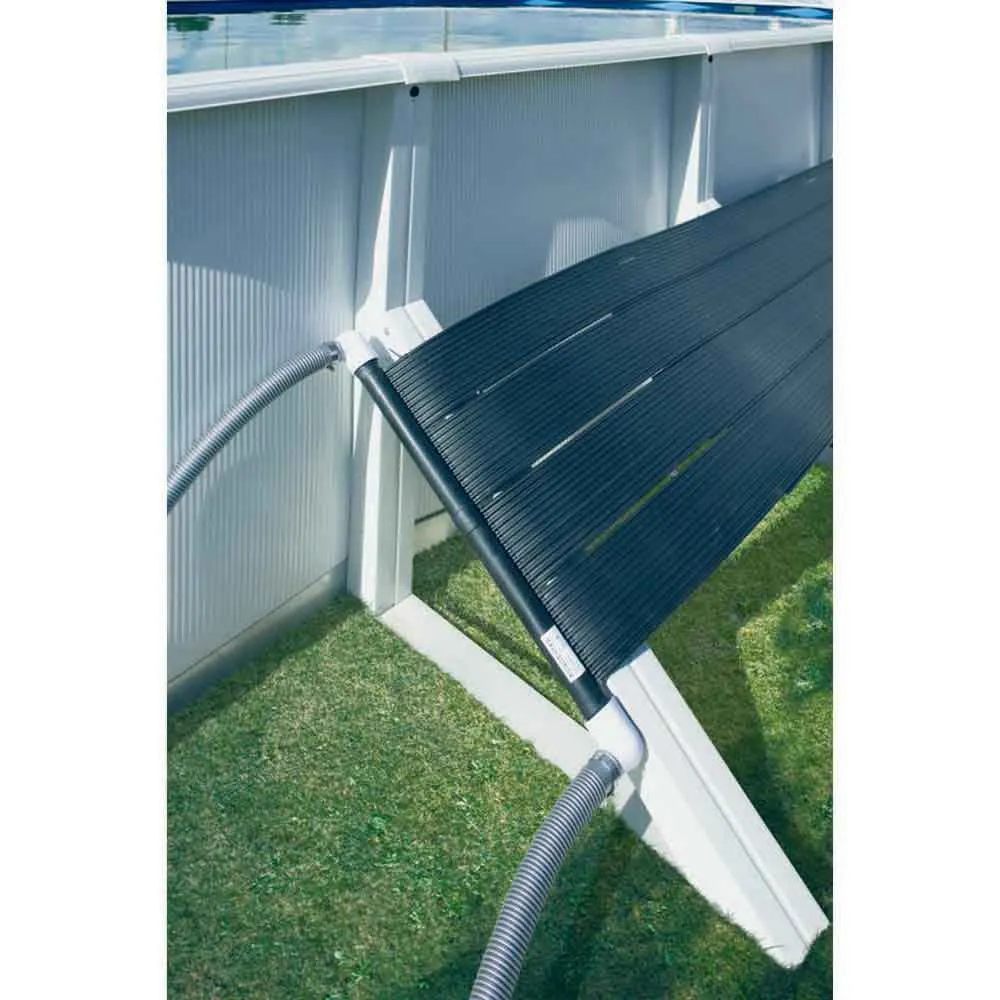

– Placed between the filter and the return nozzle by means of two hoses

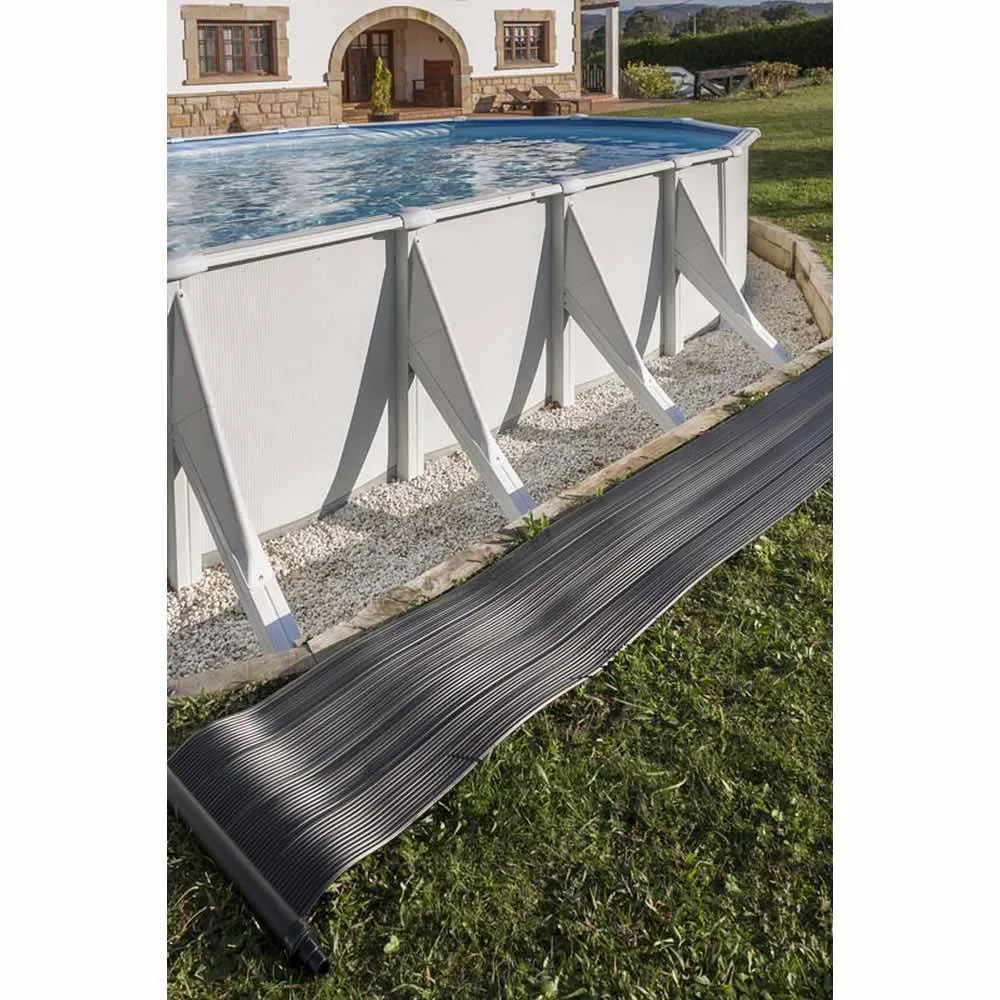

– The solar panel must be exposed to sunlight as long as possible to increase effectiveness
– Needs hoses with 32 mm diameter or 38 mm (not included)
– It is manufactured from polyethylene

Specifications:

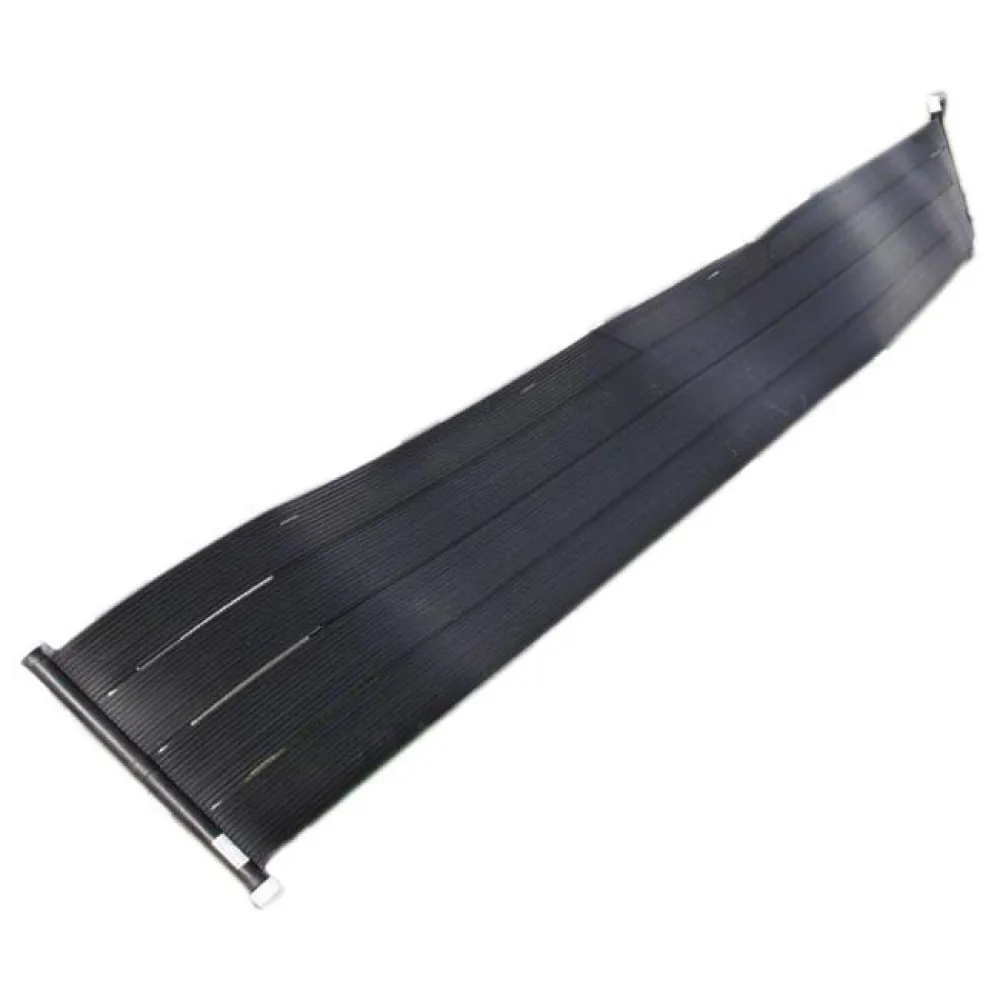

– Dimension: 600 cm long x 60 cm wide 3.6 m² of solar capturing surface
