Sand Filter 10 M³h

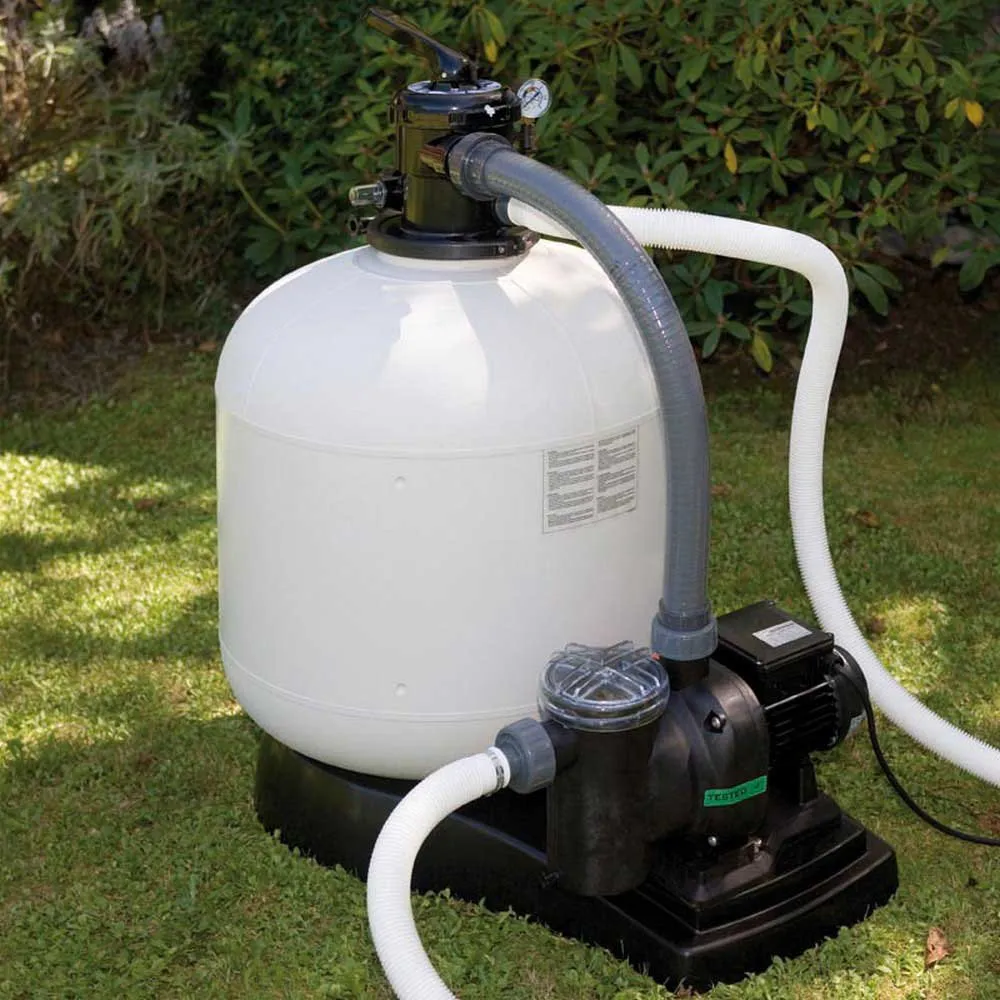

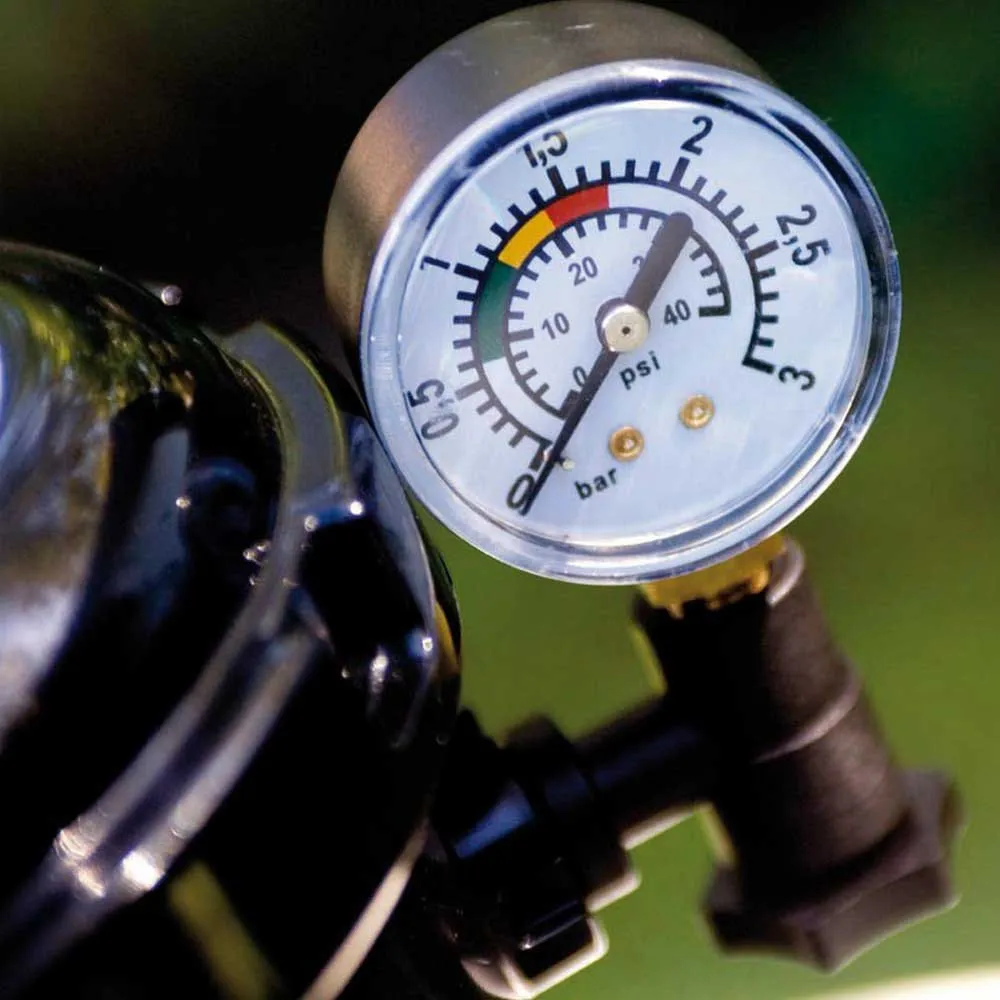

The range of GRE sand filters is a range of compact filters, easy to install and use, do not require special attention and adapt to any removable pool. Sand filtration monoblocks have a complete filtration unit that includes a pump, filter, selector valve, pressure gauge … all mounted on a plastic base with all the necessary pipeline accesories. The sand filters of GRE are certified to the European standard, guaranteeing that they comply with the safety regulations in force.

Features:

– Sand filter for above-ground swimming pools
– Suitable for swimming pools up to 75 m³
– Allows retaining the impurities in the filtering agent inside the pool
– It is very compact
– Easy to install and maintain
– Incorporates pre-filter to retain the largest particles and void pump damage

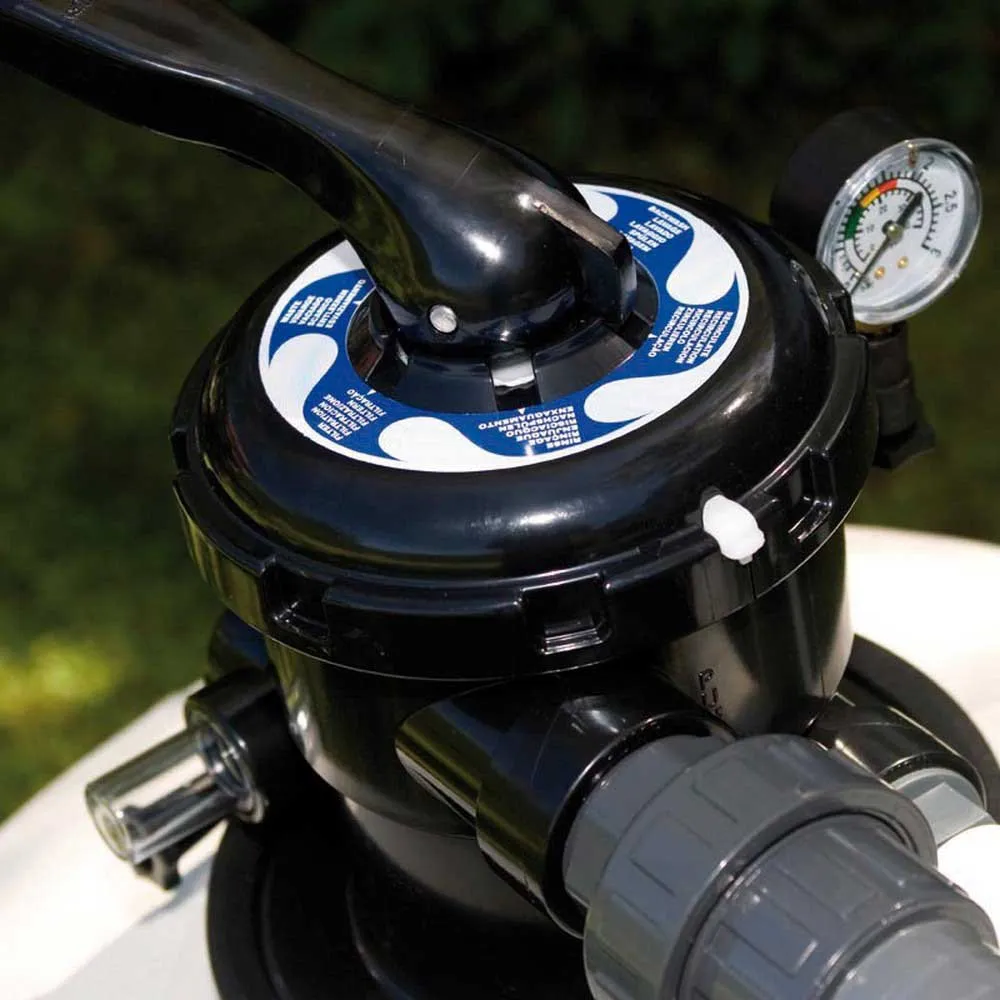

– Thanks to its 6-way selector valve, different functions can be performed: washing, rinsing, filtering, recirculating, emptying and closing
– Filtration capacity 10,000 litres per hour at 485 W of power
– Bucket diameter of 600 mm
– Consists of a power of 0,66 HP
– Incorporates pre-filter to retain the largest particles and void pump damage
– Valid for filtering substances like: sand, glass and Aqualoon
– Allows a sand load of ± 130 Kg (not included)
– Needs hoses with 50 mm diameter (not included)
– Impurities are held by the filter media inside the tank. Compact sized, easy to install and use and special care is not required

Specifications:

– Size / Weight 54 x 30 x 60 cm / 24,6 Kg
– Flow rate 10 m3/h
– System flow rate 8,5 m3/h
– Filtering speed 37 m3/m2/h
– Ø Filter Ø 600 mm
– Power / Voltage 485 W / 220/230 V 50 Hz
– Ports 6
– Sand filling ±130 Kg
– Grain size 0,4 – 0,8 mm
– Max.working pressure 1,3 Bar
– Ø Connexions Ø 38 mm
